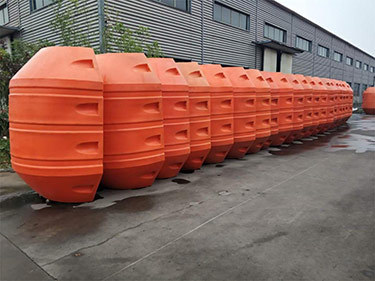

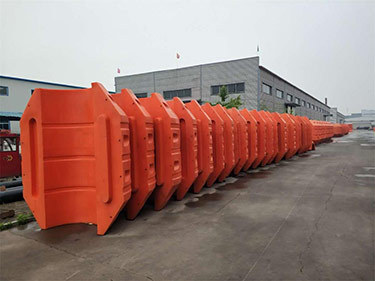

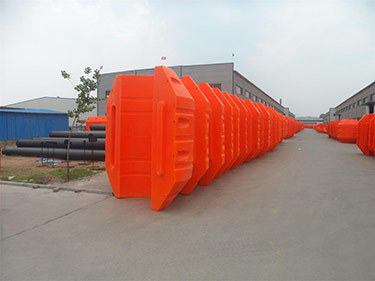

Dredging pipe floats, made by Shandong Xincheng Pipe Co., Ltd., are made from high wear resistance PE by rotational molding technology. A complete float consists of two MDPE halves filled with PU foam and connected by galvanized / stainless steel bolts, nuts and washers.

Shandong Xincheng Pipe Co., Ltd. is a professional manufacture of dredging HDPE pipe with 10+years experiences. Xincheng pipe floats enjoy good reputation for its reasonablie structure.

Locating Slot: The two halves will be tightly connected with locating slots.

MDPE havles: Made of high wear reisstance PE by rotomolding technology.

PU Foam inside: Hard foam, solid core for structural strength, less water absorption, protect floats from sinking when punctured.

Galvanized bolts, nuts and washers: Stainless steel bolts also available with a cost increase.

Standard Dimension for different Pipes

With 10 years’ experiences of manufacturing pipes floats, Shandong xincheng has developed a standard system for different sizes of HDPE pipes / Steel pipes. And the standard has been well accepted among users.

I.D. (mm)(= pipe O.D.)	O.D. （mm）	Length （mm）
110	300	580
160	500	800
225	600	700
315	850	1100
355	1100	1100
400	1100	1200
450	1200	1200
480	1300	1300
500	1400	1400
560	1400	1500
630	1400	1700
710	1500	1800
750	1600	2000
800~850	1800	2200
940	2200	2500
1066	2300	2500

Besides the standard dimensions, customized designs and dimensions are also available. Or, tell us your pipe outer diameter and expected buoyance, we can design for you accordlingly.

Installation Instruction

Customized Marking

Painted /Printed marking: free of charge, stay about 2 years.

Metal-plate molded marking: irrevocable, the metal plate which is engraved customized marking is sticked to mold when heated in the machine oven. Customer will pay the metal plate cost.

Mold-in marking: have to open new mold with marking, customer will pay mold cost. Mold with this marking is special for the only customer.

Shandong XIncheng Pipe Co., Ltd. has established a strict quality control system which involves each step of manufacturing process.

Well-defined controls

Raw material

Dimension

Wall thickness

The controls begin with the testing of raw materials. Then inspectors perform measurement testings and wall thickness testing of randomly selected products. If the testing process reveals issues with the product, Shandong Xincheng will return the product for repairs or tag the product for rejection.

Shandong Xincheng has established a well-defined controls system. These controls help standarize both production and reactions to quality issues. These controls should result in final products meeting their intenede specification.

Our products are guaranteed for 1 Year.
