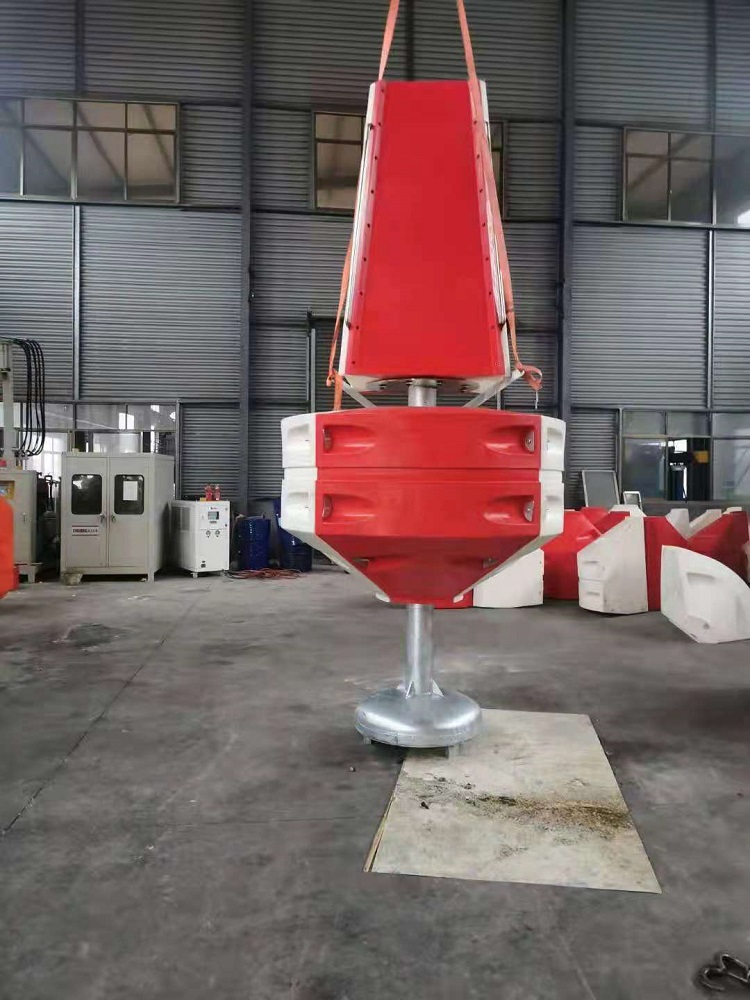

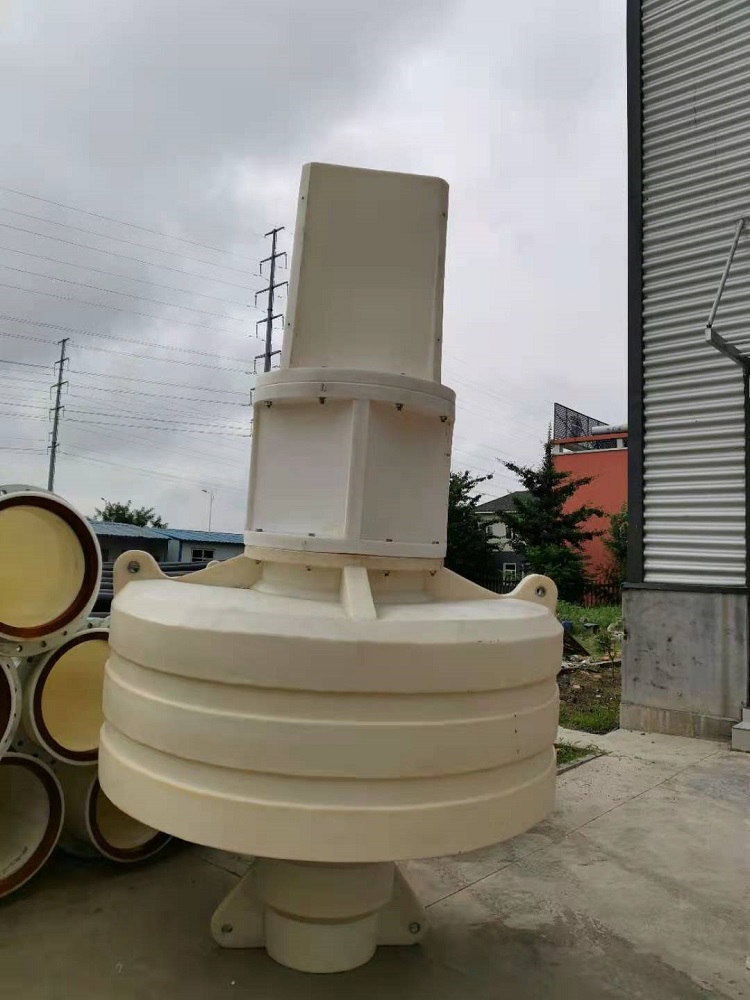

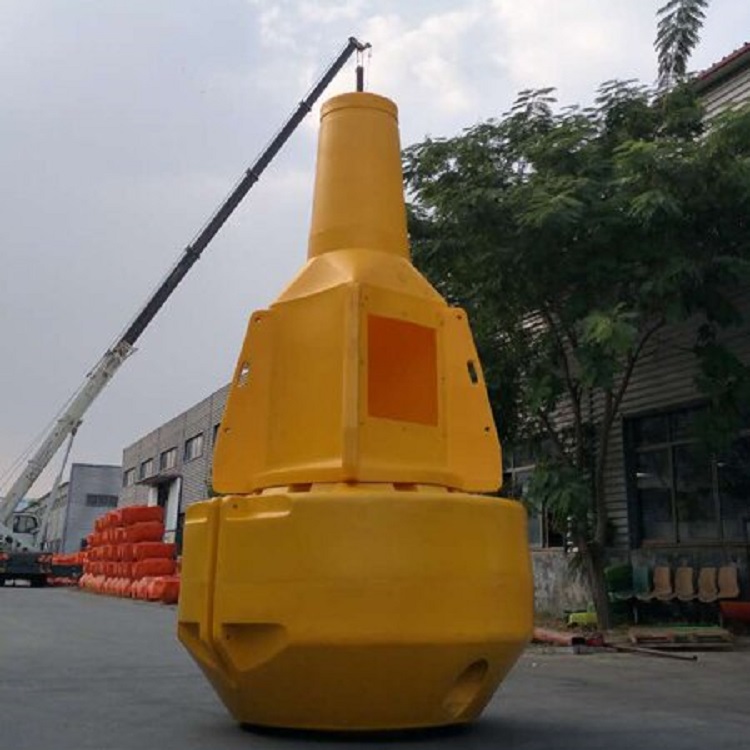

Steel marine buoy

Steel marine buoy

The navigation buoy is capable of supporting substantial loads.So that it has a wide application areas: coastal harbor, inland river, rocks, beach, islet, reef and bank etc.

Contact Us
Introduction
Quality Control
Album

Application:

The navigation buoy is capable of supporting substantial loads.So that it has a wide application areas: coastal harbor, inland river, rocks, beach, islet, reef and bank etc.

We are professional to do rotational molded buoys. And we are dedicated to build long term cooperation relationship with our clients.Size, color or logo can be customized according to customer requirement.

We use imported food PE raw materials, light weight and have big buoyancy. Because of it's higher corrosive resistance, anti-aging , it's safe and durable.

It's anti-UV , good flexibility,and excellent impact resistance, no crack.Also it's environmentally friendly.

We have competitive price with excellent quality, and good faith management.

You can save much more expenses and time on preservation, replacement and repair. Low mould costs. And the working life is three times of steel pontoon life.


Standard Specification Navigation Buoys:

Model

Dia.(mm)(Float Section)

BuoyingDepth (mm)

Free Board(mm)

Focal PlaneHeight (mm)

N. Weight(kg)

Height(kg)

ReserveCapacity (kg)

XCB600

600

1-5

400

550

35

1000

150

XCB800

800

1.5-10

450

1080

85

1500

230

XCB1200

1200

2-20

510

1640

390

2550

570

XCB1500

1500

3-35

610

2040

560

3250

974

XCB1800

1800

5-70

700

2431

950

3680

1500

XCB2000

2000

10-80

800

3018

1130

4350

2450

XCB2400

2400

10-90

960

3727

1370

5320

3951

XCB3000

3000

20-120

1114

4164

1800

6500

7646

XCB3500

3500

20-150

1240

5090

2100

7430

9880


Shandong XIncheng Pipe Co., Ltd. has established a strict quality control system which involves each step of manufacturing process.

Well-defined controls

Raw material

Dimension

Wall thickness

The controls begin with the testing of raw materials. Then inspectors perform measurement testings and wall thickness testing of randomly selected products. If the testing process reveals issues with the product, Shandong Xincheng will return the product for repairs or tag the product for rejection.

Shandong Xincheng has established a well-defined controls system. These controls help standarize both production and reactions to quality issues. These controls should result in final products meeting their intenede specification.

Our products are guaranteed for 1 Year.
